9 Cavity 700ml high capacity PET Top Linear Automatic Plastic Bottle Blowing Machine Price
Technical Parameters
Product Introduction:

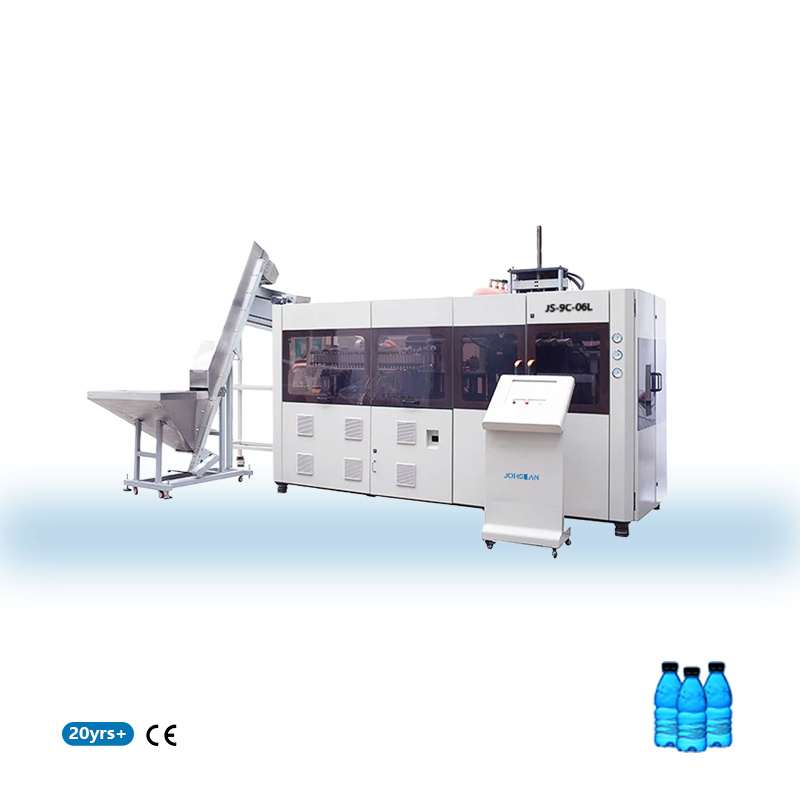

The JS-9C-06L High Speed Top Blowing Linear Blow Moulding Machine is a state-of-the-art addition to the newest Blow moulding machinery spots. This machine boasts a high-output capability with a theoretical yield of 18000 BPH, making it an ideal choice for high-volume production environments. With a robust design featuring 9 cavities, it can produce bottles with a maximum capacity of 0.7L, and its precise heating spacing of 38 mm ensures uniform heat distribution for consistent quality. The newest Blow moulding machinery spots are characterized by the JS-9C-06L’s efficiency, with a total power consumption of 90 KW and a heating power of 72 KW, which allows for rapid and energy-saving production cycles.
Furthermore, the JS-9C-06L is equipped with a servo motor power of 19 KW and other motor power of 5 KW, providing the necessary force for smooth operation. The machine’s dimensions of 5.51.92.3 M and a weight of 7500 KG reflect its compact and sturdy construction, which is essential for the newest Blow moulding machinery spots where space optimization is key. The operating pressure of 8 Bar and a blowing pressure of 35 Bar ensure that the bottles are formed with precision and strength, while the low and high-pressure air consumption rates are optimized for minimal resource usage.
| Project | UNIT | JS-9C-06L |
| Production capacity | BPH | 17000-19000 |
| Number of Cavity | 9 | |
| Clamping force | KN | 530 |
| Mould opening stroke | mm | 100 |
| Stretch stroke | mm | 280 |
| Max. Container Volume | L | 0.7 |
| Max. Neck Size | mm | 30 |
| Max. Bottle diameter | mm | 70 |
| Max. Bottle height | mm | 280 |
| Installed Power | Kw | 90 |
| Max. Heating Power | Kw | 72 |
| Operating Air Pressure | Kg/cm2 | 8 |
| Operating Air Consumption | liters/min | 1000 |
| Blowing Air Pressure | KG/cm2 | 35 |
| Blowing Air Consumption | liters/min | 7500 |
| Cooling water Pressure | Kg/cm2 | 4-5 |
| Cooling water Temperature | °C | 10-20 |
| Cooling water Flow | liters/min | 100 |
| Measurement (L x W x H) | M | 5.5*1.9*2.3 |
| Machine Weight | Tons | 7.5 |
Product Advantages
Build over two decades of experience in PET blow molding, Johsean's blow molding solutions are dedicated to delivering excellence in quality, safety, adaptability, competitiveness, and ecological advantages. Our team of experts specializes in tailoring solutions to match your product and production requirements at every stage.
Johsean offering personalized machine designs with options for reduced carbon footprint. Our pioneering, robust, and patented solutions are designed to optimize production efficiency through customized blowing processes to suit your specific demands.
Explore the evolution of our blow molding technology and discover how it can elevate your future PET machine production!
Features
Fully Automated Operation
Energy-saving technology are frequently used into full automatic machines to reduce power usage during operation.
High Production Capacity
Fully automatic blow molding machines are perfect for high-volume production because they can crank out a lot of bottles per minute.
Flexibility
They provide manufacturers versatility because they may be set up to create bottles in a variety of sizes, shapes, and patterns.
Efficient Heating and Cooling Systems
For accurate temperature control during the blow molding process, these machines are outfitted with cutting-edge heating and cooling systems.
User-Friendly Interface
Many models come with user-friendly interfaces that make it simple to change settings, track production, and identify problems.
Energy-Efficient Design
Energy-saving technology are frequently used into full automatic machines to reduce power usage during operation.
Benefits
High Productivity: Full automatic blow molding machines have a remarkable capacity for production, which boosts overall output and shortens production times.
Consistency: Automation guarantees uniform bottle shapes, constant product quality, and fewer manufacturing flaws.
Labor Savings: These machines require little manual assistance, which lowers labor costs and eliminates the need for skilled operators, making them efficient.
Waste reduction: Exact control over the blow molding procedure lowers material waste and raises manufacturing efficiency as a whole.
Customization for Various Industries: Due to their adaptability, these machines are employed in a variety of industries, including the food and beverage, cosmetics, pharmaceutical, and more.
Energy Efficiency: Many models include energy-efficient elements that cut down on power usage and support sustainability programs.
