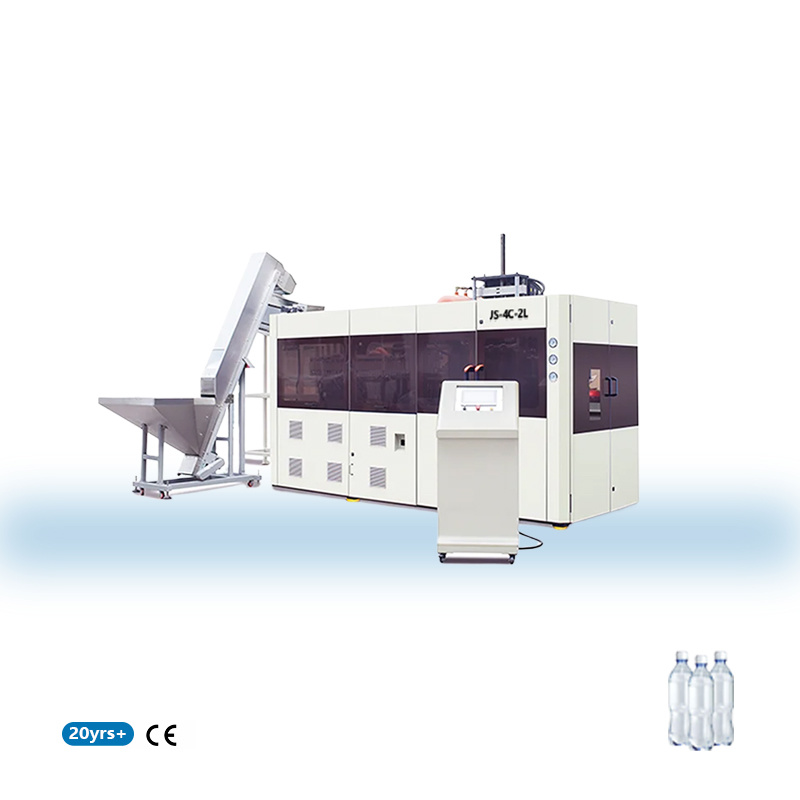

4Cavity 2L PET High Speed Plastic Bottle Manufacturing Machine for water and soft drinks bottle
Technical Parameters
Product Introduction:
The JS-4000S Automatic bottle blowing machine is a state-of-the-art solution designed to meet the demands of modern beverage manufacturing. This advanced Automatic bottle blowing machine boasts a production capacity of 4000-5500 bottles per hour, ensuring high efficiency and productivity. With 4 cavities and a clamping force of 350 KN, it is capable of producing a variety of bottle shapes and sizes. The machine’s stretch stroke of 350 mm and a maximum container volume of 2 liters provide flexibility for different product requirements. The advanced Automatic bottle blowing machine is equipped with a mold opening stroke of 130 mm and can handle bottles with a maximum neck size of 40 mm, diameter of 105 mm, and height of 350 mm.
In addition to its impressive capabilities, the JS-4000S Automatic bottle blowing machine is designed with energy efficiency in mind. It features an installed power of 103 Kw and a maximum heating power of 94 Kw, ensuring optimal performance while reducing energy consumption. The operating air pressure of 8 Kg/cm2 and blowing air pressure of 35 KG/cm2 guarantee precise bottle formation. The advanced Automatic bottle blowing machine also includes a cooling water system that maintains a temperature of 10-20°C and a flow of 100 liters/min, ensuring continuous operation. With dimensions of 3.92.12.2 meters and a weight of 4.6 tons, this machine is compact and easy to integrate into existing production lines.
| Project | UNIT | JS-4000S |
| Production capacity | BPH | 4000-5500 |
| Number of Cavity | 4 | |
| Clamping force | KN | 350 |
| Mould opening stroke | mm | 130 |
| Stretch stroke | mm | 350 |
| Max. Container Volume | L | 2 |
| Max. Neck Size | mm | 40 |
| Max. Bottle diameter | mm | 105 |
| Max. Bottle height | mm | 350 |
| Installed Power | Kw | 103 |
| Max. Heating Power | Kw | 94 |
| Operating Air Pressure | Kg/cm2 | 8 |
| Operating Air Consumption | liters/min | 1500 |
| Blowing Air Pressure | KG/cm2 | 35 |
| Blowing Air Consumption | liters/min | 5200 |
| Cooling water Pressure | Kg/cm2 | 4-5 |
| Cooling water Temperature | °C | 10-20 |
| Cooling water Flow | liters/min | 100 |
| Measurement (L x W x H) | M | 3.9*2.1*2.2 |
| Machine Weight | Tons | 4.6 |
Product Advantages
Build over two decades of experience in PET blow molding, Johsean's blow molding solutions are dedicated to delivering excellence in quality, safety, adaptability, competitiveness, and ecological advantages. Our team of experts specializes in tailoring solutions to match your product and production requirements at every stage.
Johsean offering personalized machine designs with options for reduced carbon footprint. Our pioneering, robust, and patented solutions are designed to optimize production efficiency through customized blowing processes to suit your specific demands.
Explore the evolution of our blow molding technology and discover how it can elevate your future PET machine production!
Features
Fully Automated Operation
Energy-saving technology are frequently used into full automatic machines to reduce power usage during operation.
High Production Capacity
Fully automatic blow molding machines are perfect for high-volume production because they can crank out a lot of bottles per minute.
Flexibility
They provide manufacturers versatility because they may be set up to create bottles in a variety of sizes, shapes, and patterns.
Efficient Heating and Cooling Systems
For accurate temperature control during the blow molding process, these machines are outfitted with cutting-edge heating and cooling systems.
User-Friendly Interface
Many models come with user-friendly interfaces that make it simple to change settings, track production, and identify problems.
Energy-Efficient Design
Energy-saving technology are frequently used into full automatic machines to reduce power usage during operation.
Benefits
High Productivity: Full automatic blow molding machines have a remarkable capacity for production, which boosts overall output and shortens production times.
Consistency: Automation guarantees uniform bottle shapes, constant product quality, and fewer manufacturing flaws.
Labor Savings: These machines require little manual assistance, which lowers labor costs and eliminates the need for skilled operators, making them efficient.
Waste reduction: Exact control over the blow molding procedure lowers material waste and raises manufacturing efficiency as a whole.
Customization for Various Industries: Due to their adaptability, these machines are employed in a variety of industries, including the food and beverage, cosmetics, pharmaceutical, and more.
Energy Efficiency: Many models include energy-efficient elements that cut down on power usage and support sustainability programs.
Product Video
4Cavity 2L PET High Speed Plastic Bottle Manufacturing Machine for water and soft drinks bottle
